Horizontal Broke Pulpers (HB)

The Horizontal Broke Pulpers (HB) are designed for pulping both wet and dry broke from paper and cardboard machines. They consist of a tank with horizontally arranged pulping elements, a base, and a driving unit.

Design Features

• Customization: Designed and delivered according to the specified paper grade, paper web width, and PM performance.
• Efficient Pulping Process: The rounded shape of the tank enhances pulping efficiency. A deflector installed above the pulper rotor prevents stock splashing.
• Cleaning: The pulper stator can be cleaned with washing water directed into the functional elements.
• Output Configuration: The output branch of the pulped stock and the stock discharge branch of the chest are chosen based on operating conditions. Unnecessary branches can be closed with blind flanges.
• Easy Maintenance: The pulper tank features a manhole for easy access to functional elements.
• Additional Components: Can be equipped with a chute and a sliding shower pipe to direct the broke as required.
• Performance: Suitable for both dry broke under the reel and wet broke under presses.

Compliance

• Designed and manufactured to meet EU and EAC standards for machine design and work safety.

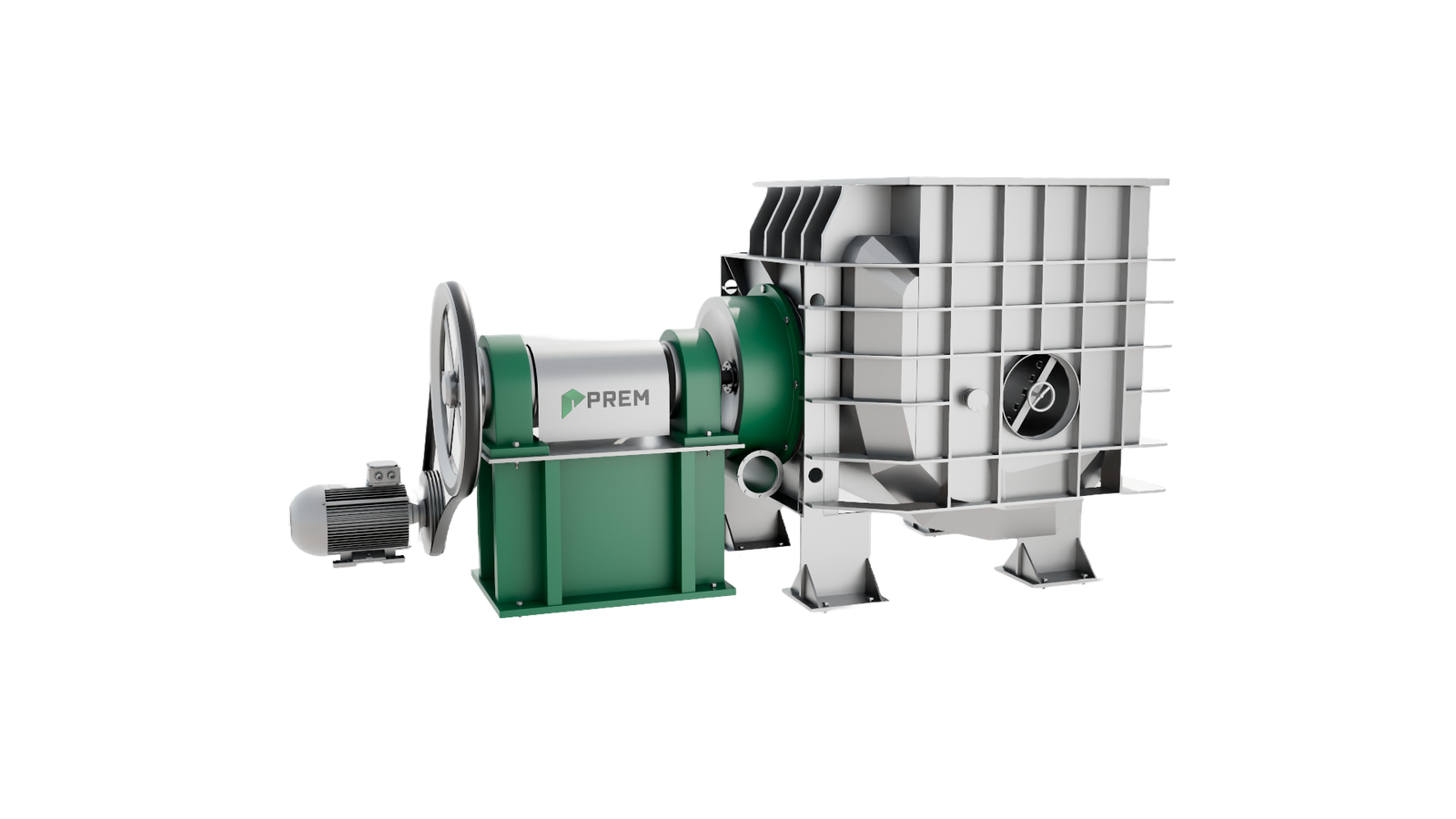

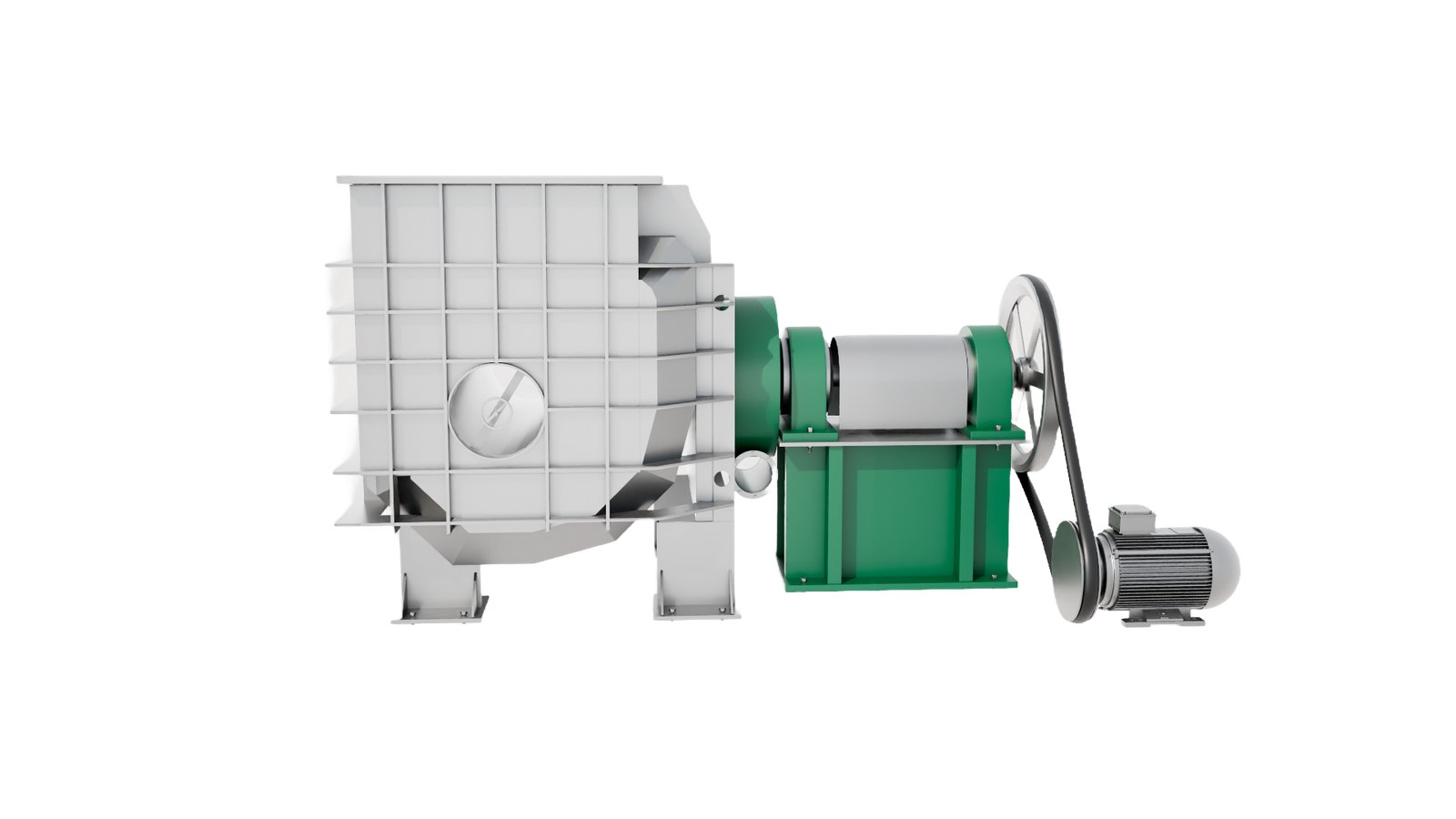

Machine Parts

1. Welded Stainless Chest: Features a manhole for easy access.
2. Functional Elements:
   • Rotor: Key pulping component.
   • Vaned Rim: Assists in efficient pulping.
   • Stator Screen: Separates pulped material.
3. Outlet Body: For discharging pulped stock.
4. Bearing Housing: Ensures smooth operation.
5. V-Belt Drive with Cover: Transmits power efficiently.
6. Electric Motor on Slide Rails: Provides the necessary drive.

Material

• All parts in contact with the stock are made of stainless steel.
• Output body and functional elements are made of special wear-resistant stainless cast steel.

Scope of Delivery

• Complete machine as described, including the drive system (standard delivery excludes the electric motor).
• Additional accessories available upon customer request.

Advantages

• Efficient Pulping: Rounded tank design and functional elements improve pulping efficiency.
• Customizable Output: Flexible configuration of output branches to suit operational needs.
• Easy Maintenance: Manhole and wash systems facilitate easy cleaning and maintenance.
• Durability: Constructed from wear-resistant materials for long-term use.

The HB pulpers offer robust and efficient solutions for handling broke from paper and cardboard machines, designed to meet stringent standards and adaptable to various operational requirements.
